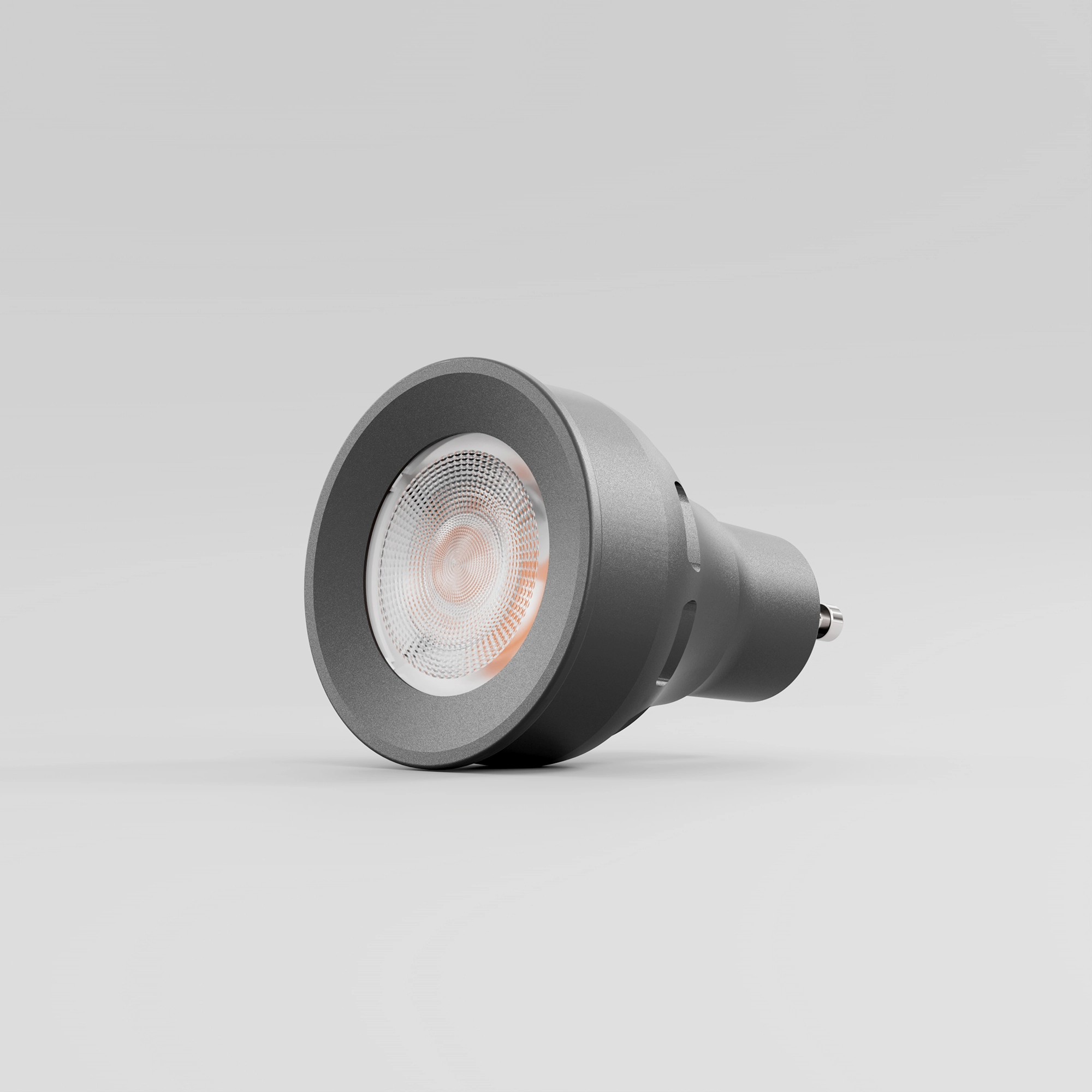

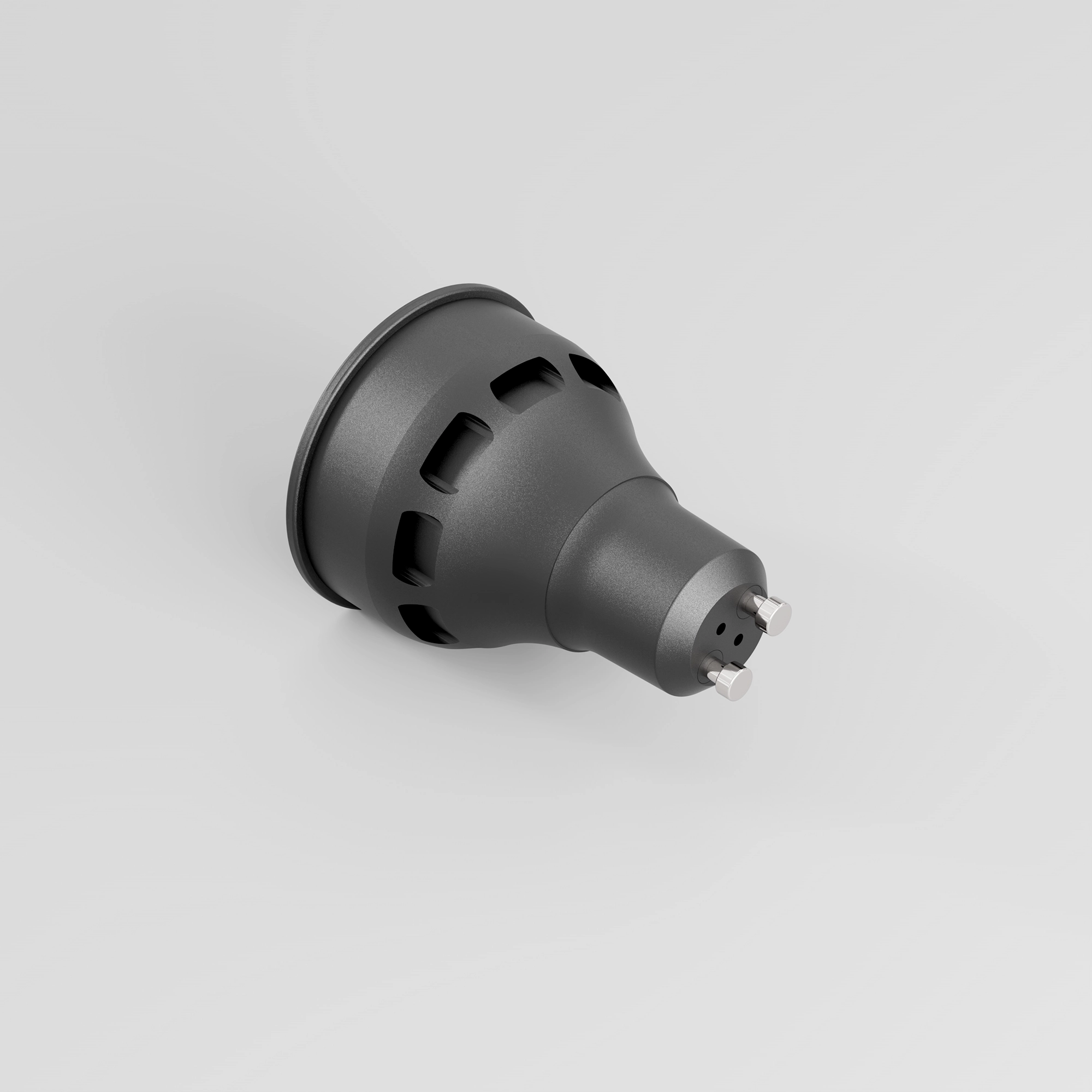

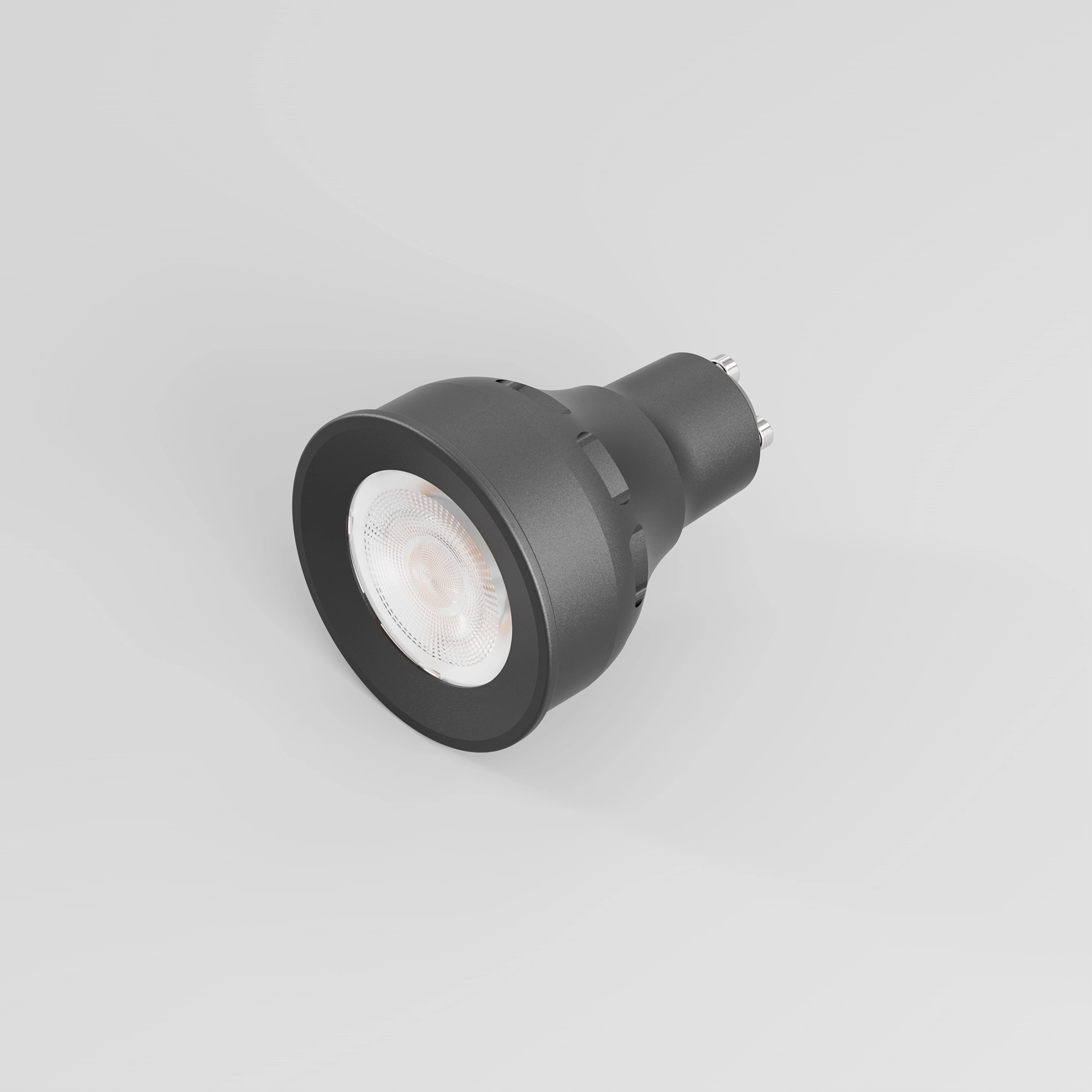

NRP-GU10-7 Series
GU10 LED Retrofit Lamp
High Efficiency & Excellent CRI
5W/7W · 36°/60° beam angles · COB/SMD optional · Class II · AC220-240V
POWER (WATT)
7.0
IP RATING
IP20
CCT
2700K/3000K/4000K/6500K
BEAM ANGLE
60°
CRI (RA)
95
Technical Specifications Basic Parameters
Model No
NRP-GU10-7 Series
Category
LED GU10 Light Source/LED GU11 Light Source/LED GU12 Light Source/LED GU13 Light Source
Installation Methods
Portable
Classes of Electrical Protection
Class II
IP Rating
IP20
Ta
40°C
Input Voltage
AC220-240V
Frequency
50/60Hz
Input Current
64mA
Cap Type
GU10
Lamp Type
MR16
Type of Chips
COB
Watt
7.0
lm/w
95.0/100.0/105.0
Useful Lumen
665.0/700.0/735.0
CCT
2700K/3000K/4000K/6500K
Beam Angle
60°
SDCM
<3
Ra
95
PF
0.5
DF
0.7
Body Color
Black
Product Main Material
Aluminum
Dimming or not
Non‑dimmable
Cut hole (mm)
Guarantee
10
Directionality
Direct
Product Size (mm)
Φ50*67
Energy efficiency QR included
Product Description Architectural grade
The NRC-GU10 Series is a cost-effective LED solution designed to replace traditional halogen GU10 lamps. Featuring high-quality COB/SMD LED chips, it is available in 5W and 7W options with high luminous efficiency and excellent CRI performance.
With optional 36° and 60° beam angles, it is suitable for both general and accent lighting. Supporting AC220-240V, 50/60Hz input and compliant with Class II safety standards, the series offers reliable performance, efficient heat dissipation, and long lifespan.
Available in black and aluminum finishes, the NRC-GU10 Series fits most standard GU10 bases and is widely used in homes, retail stores, hotels, and offices as an energy-saving lighting solution.
Model Variants 4 beam options
| New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | Ta | Input Voltage | Frequency | Input Current | Cap Type | Lamp Type | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | SDCM | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NRP-GU10-7 SW | LED GU10 Light Source | Portable | Class II | IP20 | 40°C | AC220-240V | 50/60Hz | 64mA | GU10 | MR16 | COB | 7.0 | 95.0 | 665.0 | 2700K | 60° | <3 | 95 | 0.5 | 0.7 | Black | Aluminum | Non‑dimmable | N/A | 10 | Direct | Φ50*67 |
| NRP-GU10-7 WW | LED GU11 Light Source | Portable | Class II | IP20 | 40°C | AC220-240V | 50/60Hz | 64mA | GU10 | MR16 | COB | 7.0 | 100.0 | 700.0 | 3000K | 60° | <3 | 95 | 0.5 | 0.7 | Black | Aluminum | Non‑dimmable | N/A | 10 | Direct | Φ50*67 |
| NRP-GU10-7 DW | LED GU12 Light Source | Portable | Class II | IP20 | 40°C | AC220-240V | 50/60Hz | 64mA | GU10 | MR16 | COB | 7.0 | 105.0 | 735.0 | 4000K | 60° | <3 | 95 | 0.5 | 0.7 | Black | Aluminum | Non‑dimmable | N/A | 10 | Direct | Φ50*67 |
| NRP-GU10-7 | LED GU13 Light Source | Portable | Class II | IP20 | 40°C | AC220-240V | 50/60Hz | 64mA | GU10 | MR16 | COB | 7.0 | 105.0 | 735.0 | 6500K | 60° | <3 | 95 | 0.5 | 0.7 | Black | Aluminum | Non‑dimmable | N/A | 10 | Direct | Φ50*67 |
