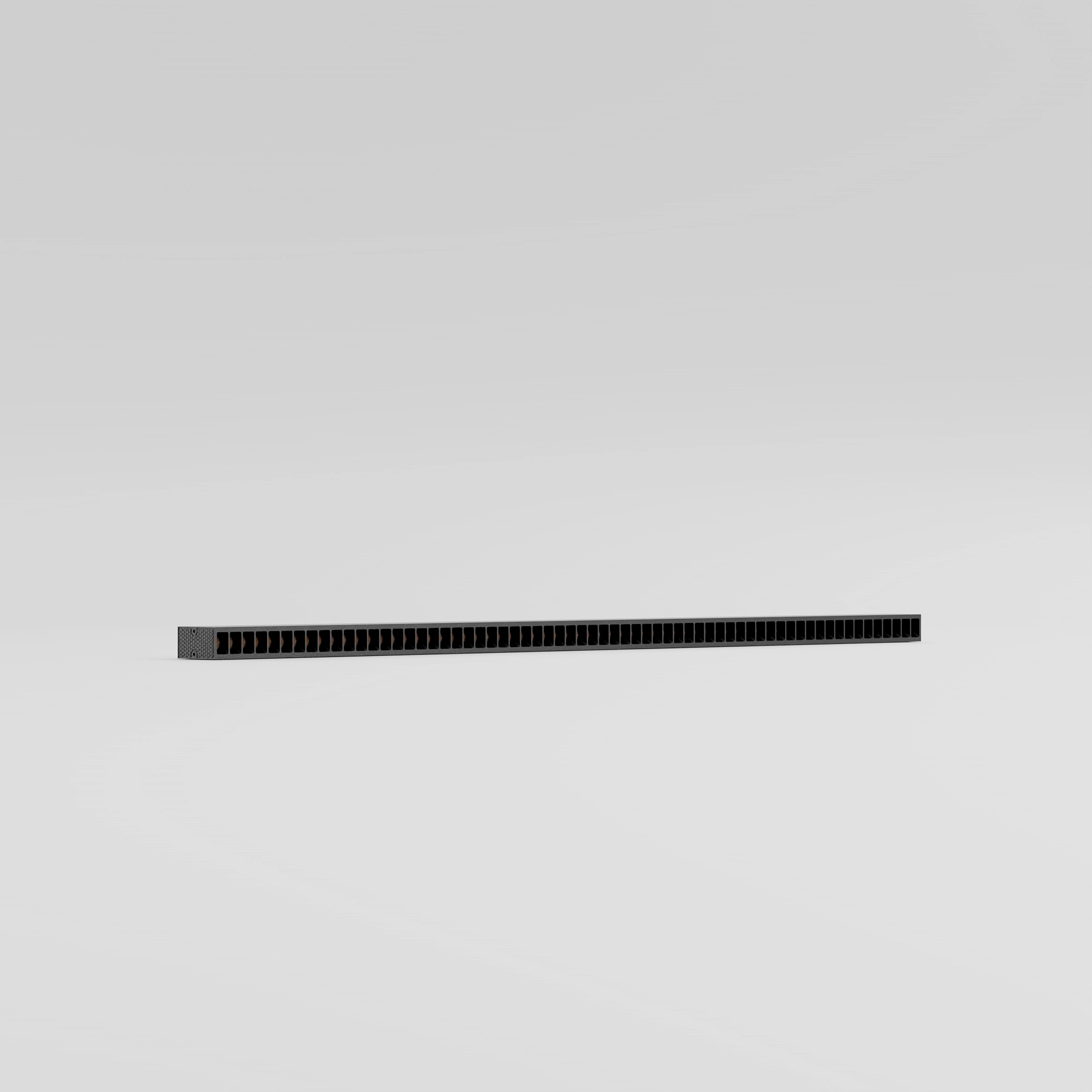

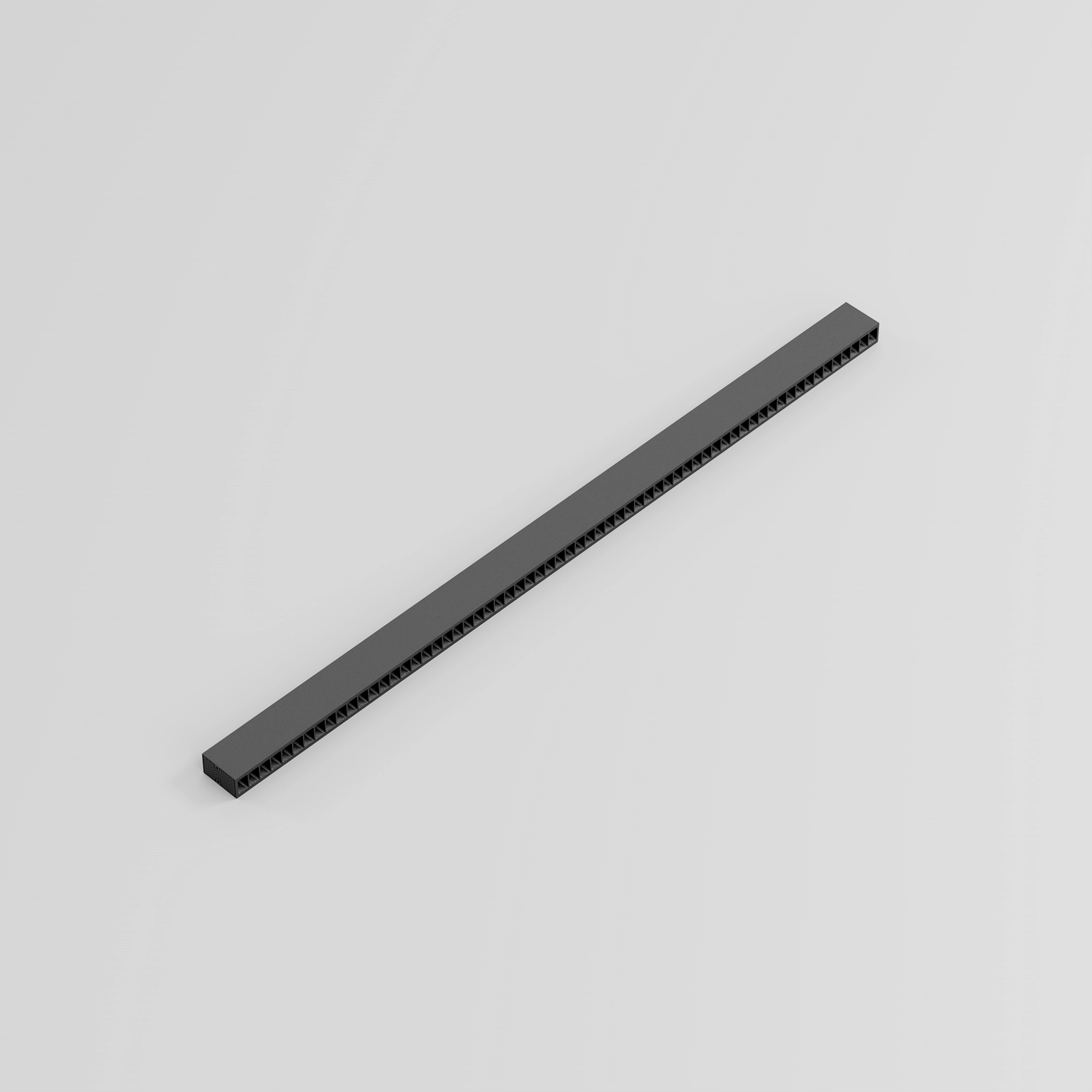

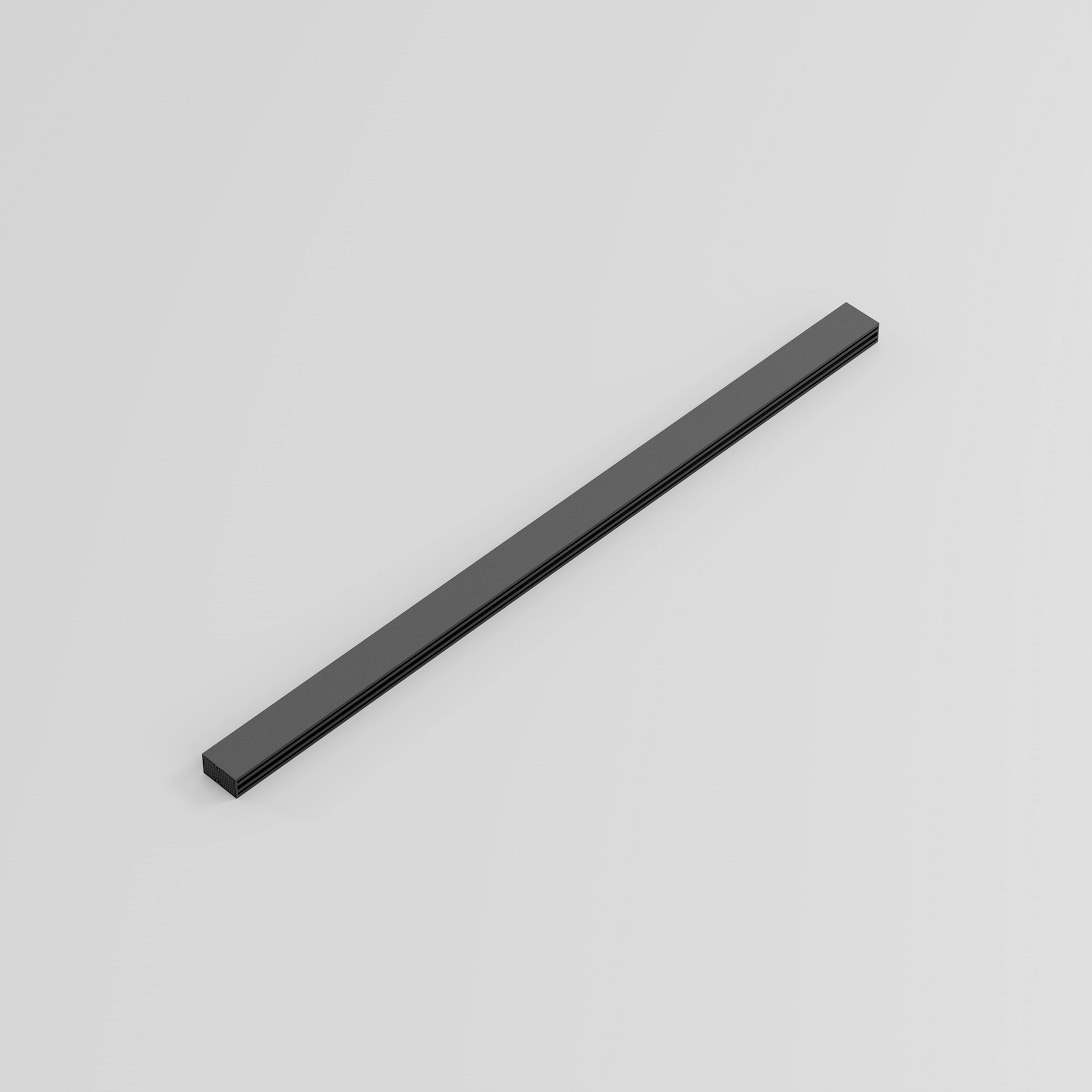

NR-LDL0201 Series
Pendant LED Linear Light
2700lm · 90lm/W · High efficacy & comfortable illumination
3000K/4000K · 60° beam angle · SMD LED · slim aluminum body · Class II · AC220-240V
POWER (WATT)
30.0
IP RATING
IP20
CCT
3000K/4000K
BEAM ANGLE
60°
Ra
80
Technical Specifications Basic Parameters
Model No
NR-LDL0201-30
Category
LED Linear Light
Installation Methods
Pendant Mounted
Classes of Electrical Protection
Class II
IP Rating
IP20
ta
40°C
Input Voltage
AC220-240V
Frequency
Hz
Input Current
Cap Type
Lamp Type
Type of Chips
SMD
Watt
30.0
lm/w
90.0
Useful Lumen
2700.0
CCT
3000K/4000K
Beam Angle
60°
SDCM
<6
Ra
80
PF
0.9
DF
0.9
Body Color
Black
Product Main Material
Aluminum
Dimming or not
Non-dimmable
Cut hole (mm)
Guarantee
5
Directionality
Direct
Product Size (mm)
1159*33*60
Energy efficiency QR included
Product Description Architectural grade
The NR-LDL0201 Series is a modern pendant-mounted LED linear light designed for commercial and architectural lighting applications. Equipped with high-efficiency SMD LED technology, it delivers 2700lm output with 90lm/W efficacy for comfortable and energy-saving illumination.
Available in 3000K and 4000K color temperatures with a 60° beam angle, the series provides balanced and uniform lighting performance. The slim aluminum body in an elegant black finish offers durability, efficient heat dissipation, and a modern appearance.
Supporting AC220-240V, 50/60Hz input and compliant with Class II safety standards, the NR-LDL0201 Series is ideal for offices, retail stores, hotels, and other indoor spaces.
Model Variants 4 beam options
| New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Input Current | Cap Type | Lamp Type | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | SDCM | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-LDL0201-30-30K-BK-60D | LED Linear Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | N/A | N/A | N/A | SMD | 30.0 | 90.0 | 2700.0 | 3000K | 60° | <6 | 80 | 0.9 | 0.9 | Black | Aluminum | Non-dimmable | N/A | 5 | Direct | 1159*33*60 |
| NR-LDL0201-30-40K-BK-60D | LED Linear Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | N/A | N/A | N/A | SMD | 30.0 | 90.0 | 2700.0 | 4000K | 60° | <6 | 80 | 0.9 | 0.9 | Black | Aluminum | Non-dimmable | N/A | 5 | Direct | 1159*33*60 |
