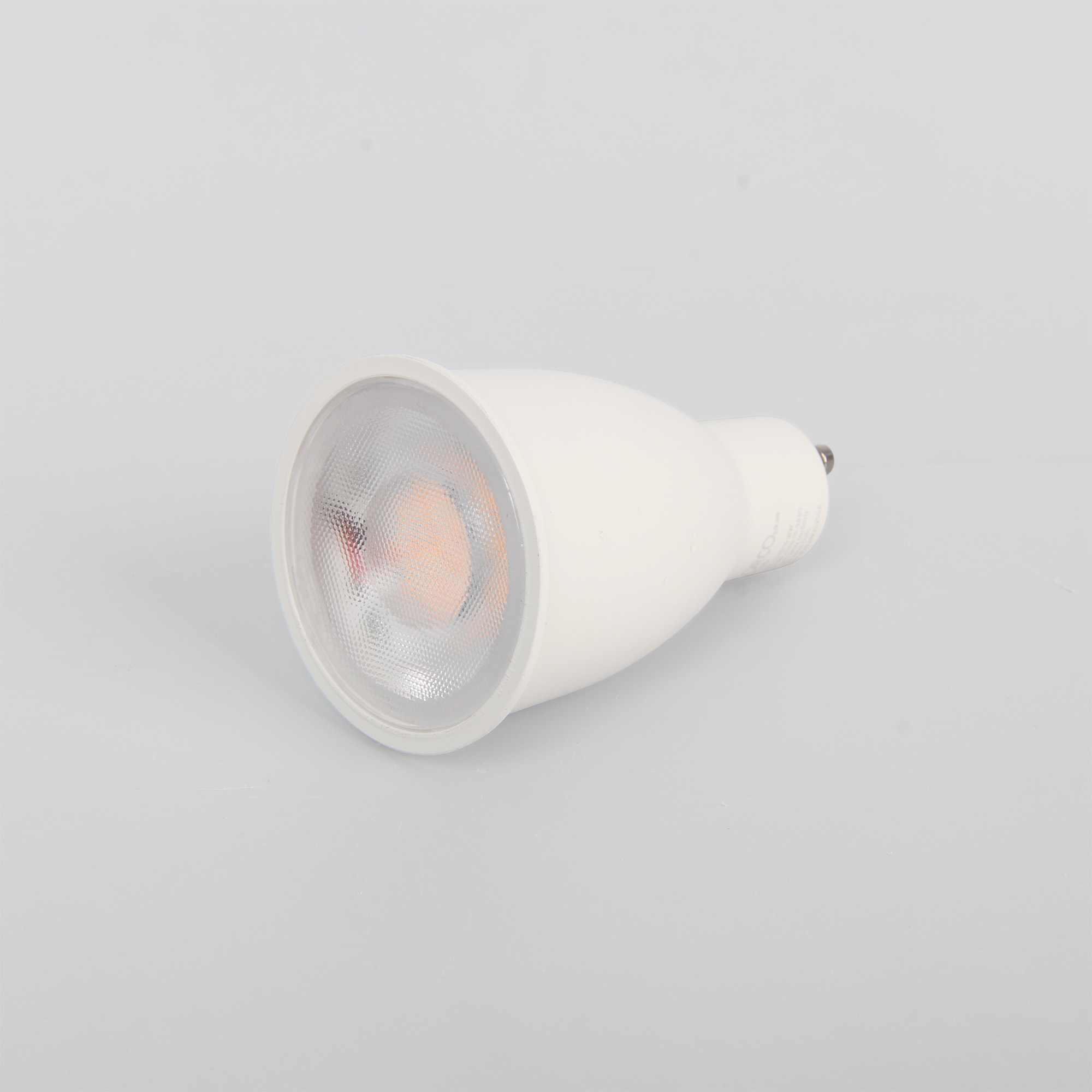

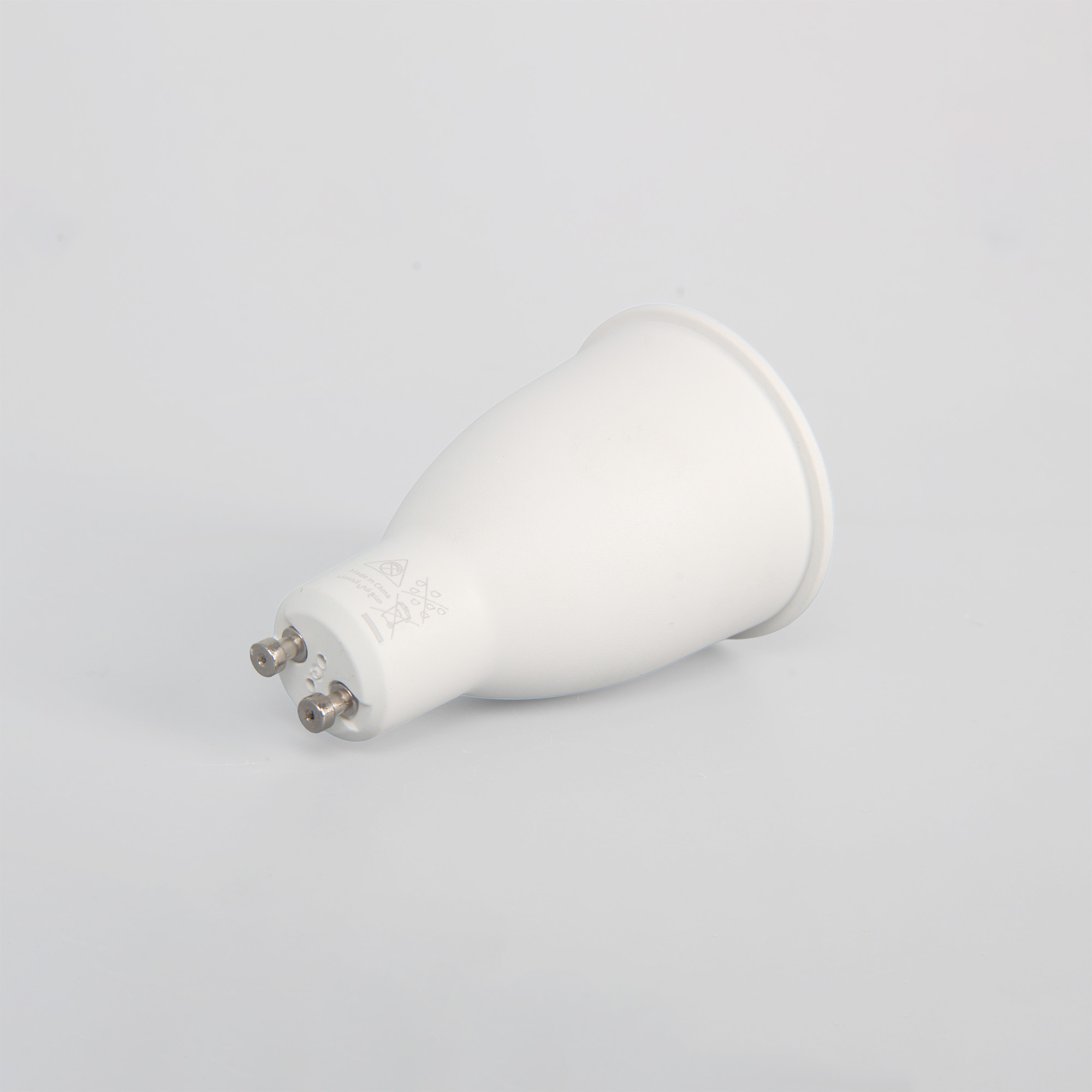

NRP-GU10 Series
POWER (WATT)
10.0/12.0
IP RATING
IP20
CCT
6500K/2700K/3000K/4000K
BEAM ANGLE
90°/60°
Ra
98/95
Technical Specifications Basic Parameters
Model No
NRP-GU10 Series
Category
LED Cup
Installation Methods
Classes of Electrical Protection
Class II
IP Rating
IP20
ta
40°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
10.0/12.0
lm/w
110.0/100.0/105.0/90
Useful Lumen
1100.0/1000.0/1050.0/1080
CCT
6500K/2700K/3000K/4000K
Beam Angle
90°/60°
Ra
98/95
PF
0.5
DF
0.7
Body Color
White
Product Main Material
Nylon
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Guarantee
3
Directionality
Direct
Product Size (mm)
Φ50*78
Energy efficiency QR included
Model Variants 4 beam options
| Item Code | New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NRP-GU10-10-9865 | NRP-GU10-10 S | LED Cup | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 10.0 | 110.0 | 1100.0 | 6500K | 90° | 98 | 0.5 | 0.7 | White | Nylon | Non-Adjustable Light | N/A | 3 | Direct | Φ50*78 | |
| NRP-GU10-10-9827 | NRP-GU10-10 SW | LED Cup | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 10.0 | 100.0 | 1000.0 | 2700K | 90° | 98 | 0.5 | 0.7 | White | Nylon | Non-Adjustable Light | N/A | 3 | Direct | Φ50*78 | |
| NRP-GU10-10-9830 | NRP-GU10-10 WW | LED Cup | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 10.0 | 105.0 | 1050.0 | 3000K | 90° | 98 | 0.5 | 0.7 | White | Nylon | Non-Adjustable Light | N/A | 3 | Direct | Φ50*78 | |
| NRP-GU10-10-9840 | NRP-GU10-10 DW | LED Cup | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 10.0 | 110.0 | 1100.0 | 4000K | 90° | 98 | 0.5 | 0.7 | White | Nylon | Non-Adjustable Light | N/A | 3 | Direct | Φ50*78 | |
| NRP-GU10-12-9530 | NRP-G10-12 WW | LED Cup | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 12.0 | 90 | 1080 | 3000K | 60° | 95 | 0.5 | 0.7 | White | Nylon | Non-Adjustable Light | N/A | 3 | Direct | Φ50*78 | |
| NRP-GU10-12-9540 | NRP-G10-12 DW | LED Cup | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 12.0 | 90 | 1080 | 4000K | 60° | 95 | 0.5 | 0.7 | White | Nylon | Non-Adjustable Light | N/A | 3 | Direct | Φ50*78 |
