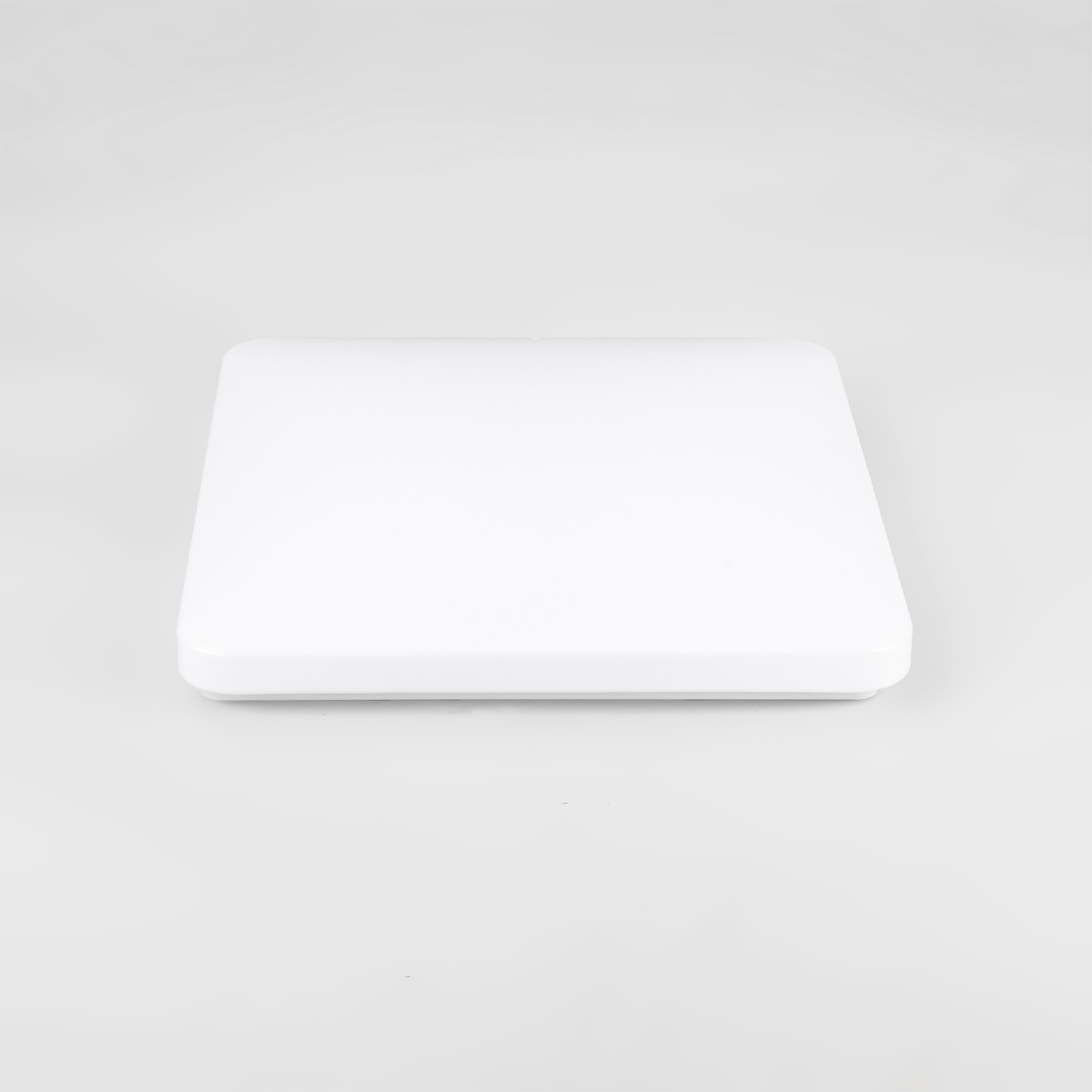

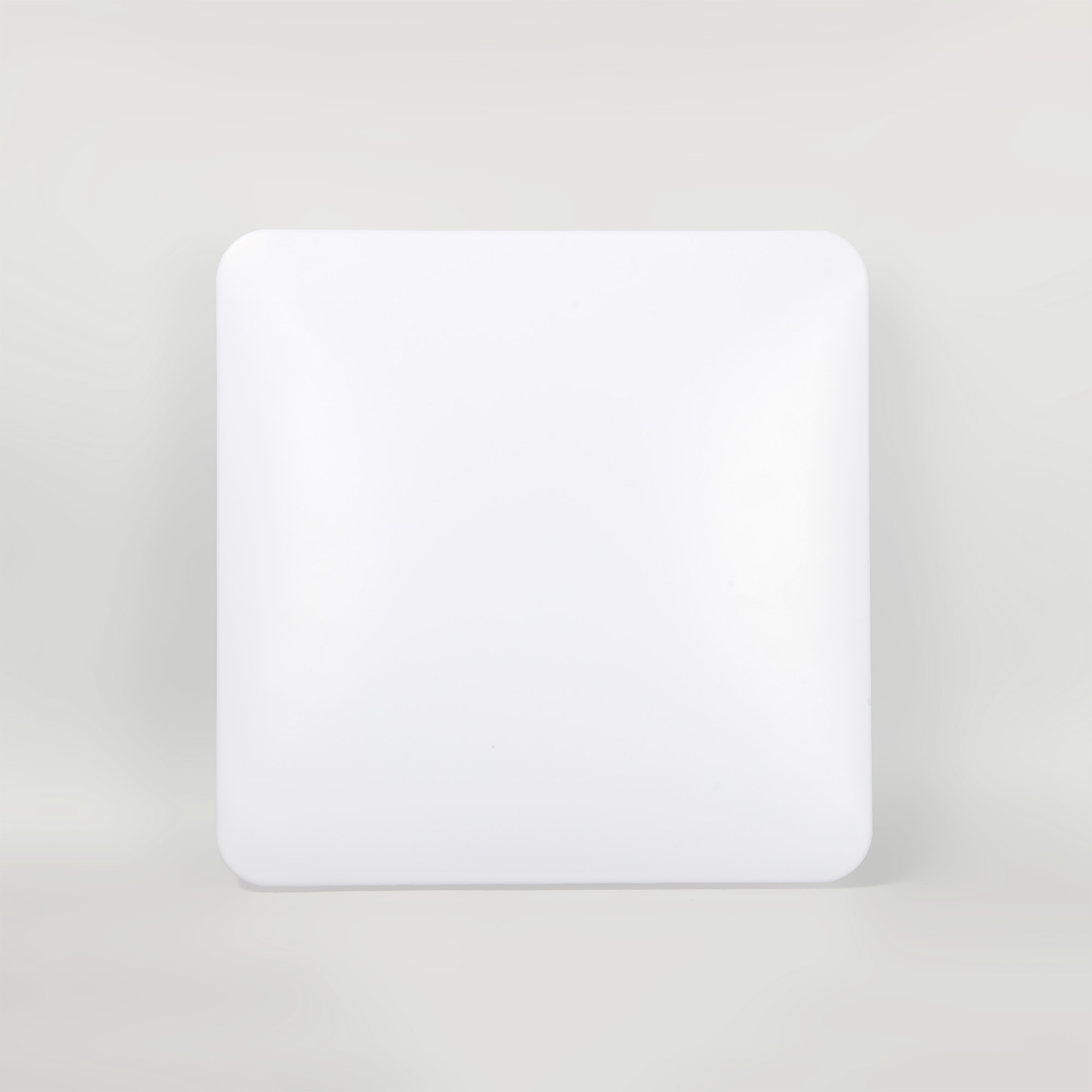

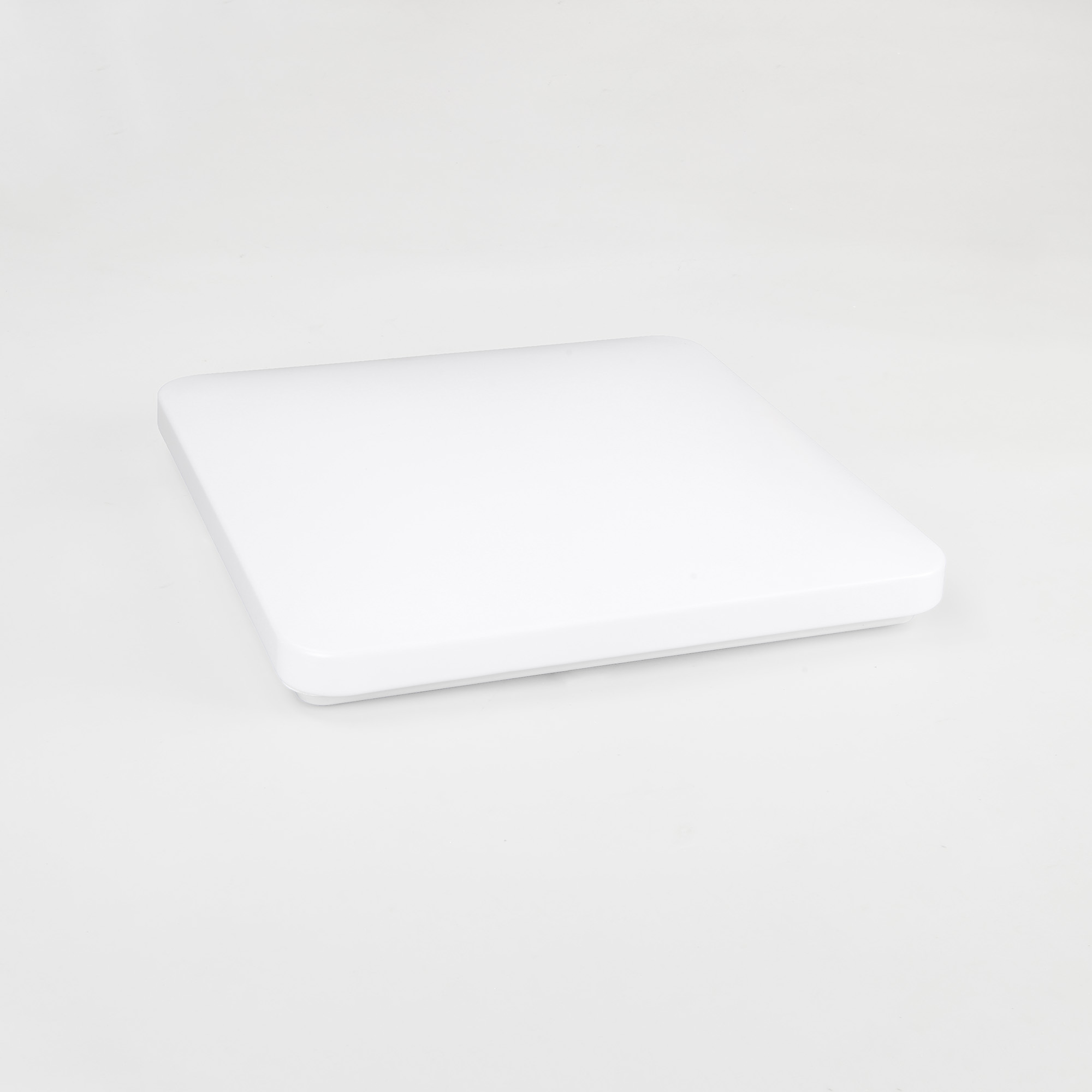

NR-PL103S-SQ Series
POWER (WATT)
24.0
IP RATING
IP20
CCT
3000K/4000K
BEAM ANGLE
120°
Ra
80/85
Technical Specifications Basic Parameters
Model No
NR-SPL0001-24
Category
LED Surface Panel Light
Installation Methods
Surface Mounted
Classes of Electrical Protection
Class I
IP Rating
IP20
ta
40°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
24.0
lm/w
74.0
Useful Lumen
1776.0
CCT
3000K/4000K
Beam Angle
120°
Ra
80/85
PF
0.5
DF
0.7
Body Color
White
Product Main Material
Pc
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Guarantee
3
Directionality
Indirect
Product Size (mm)
330*330*60
Energy efficiency QR included
Model Variants 4 beam options
| New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-SPL0001-24-30K-WH-120D | LED Surface Panel Light | Surface Mounted | Class I | IP20 | 40°C | AC220-240V | Hz | SMD | 24.0 | 74.0 | 1776.0 | 3000K | 120° | 80 | 0.5 | 0.7 | White | Pc | Non-Adjustable Light | N/A | 3 | Indirect | 330*330*60 |
| NR-SPL0001-24-40K-WH-120D | LED Surface Panel Light | Surface Mounted | Class I | IP20 | 40°C | AC220-240V | Hz | SMD | 24.0 | 74.0 | 1776.0 | 4000K | 120° | 85 | 0.5 | 0.7 | White | Pc | Non-Adjustable Light | N/A | 3 | Indirect | 330*330*60 |
