NR-OLL0504-10 Series
POWER (WATT)
10.0
IP RATING
IP65
CCT
3000K
BEAM ANGLE
45°
Ra
80
Technical Specifications Basic Parameters
Model No
NR-OLL0504-10
Category
LED Outdoor Lawn Lamp
Installation Methods
Surface Mounted
Classes of Electrical Protection
Class I
IP Rating
IP65
ta
50°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
10.0
lm/w
30.0
Useful Lumen
300.0
CCT
3000K
Beam Angle
45°
Ra
80
PF
0.7
DF
Body Color
Corten Brown/Black
Product Main Material
Aluminum
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Guarantee
3
Directionality
Direct
Product Size (mm)
105*80*600
Energy efficiency QR included
Model Variants 4 beam options
| New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

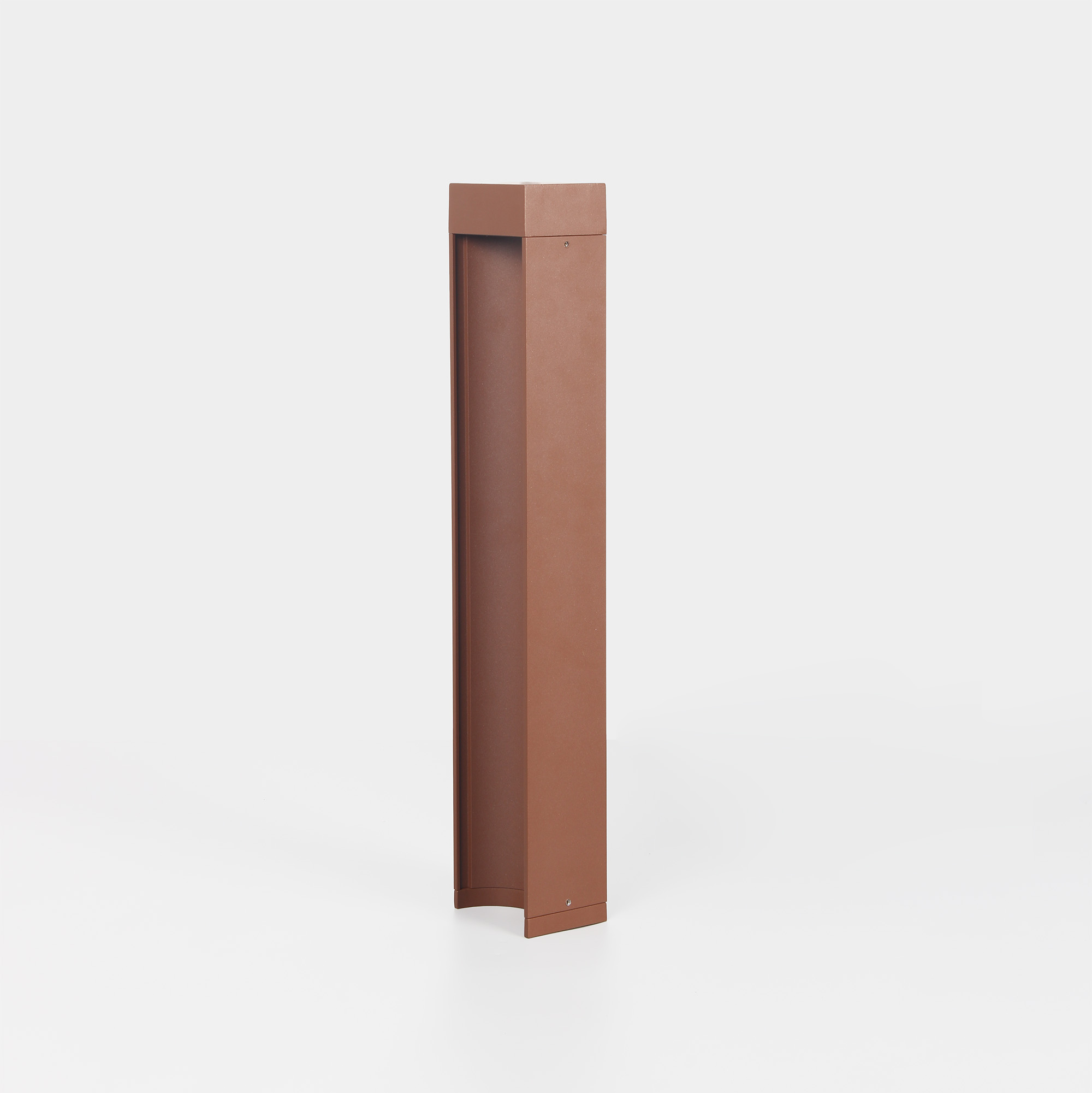

| NR-OLL0504-10-30K-CB-45D | LED Outdoor Lawn Lamp | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 10.0 | 30.0 | 300.0 | 3000K | 45° | 80 | 0.7 | Corten Brown | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 105*80*600 | |

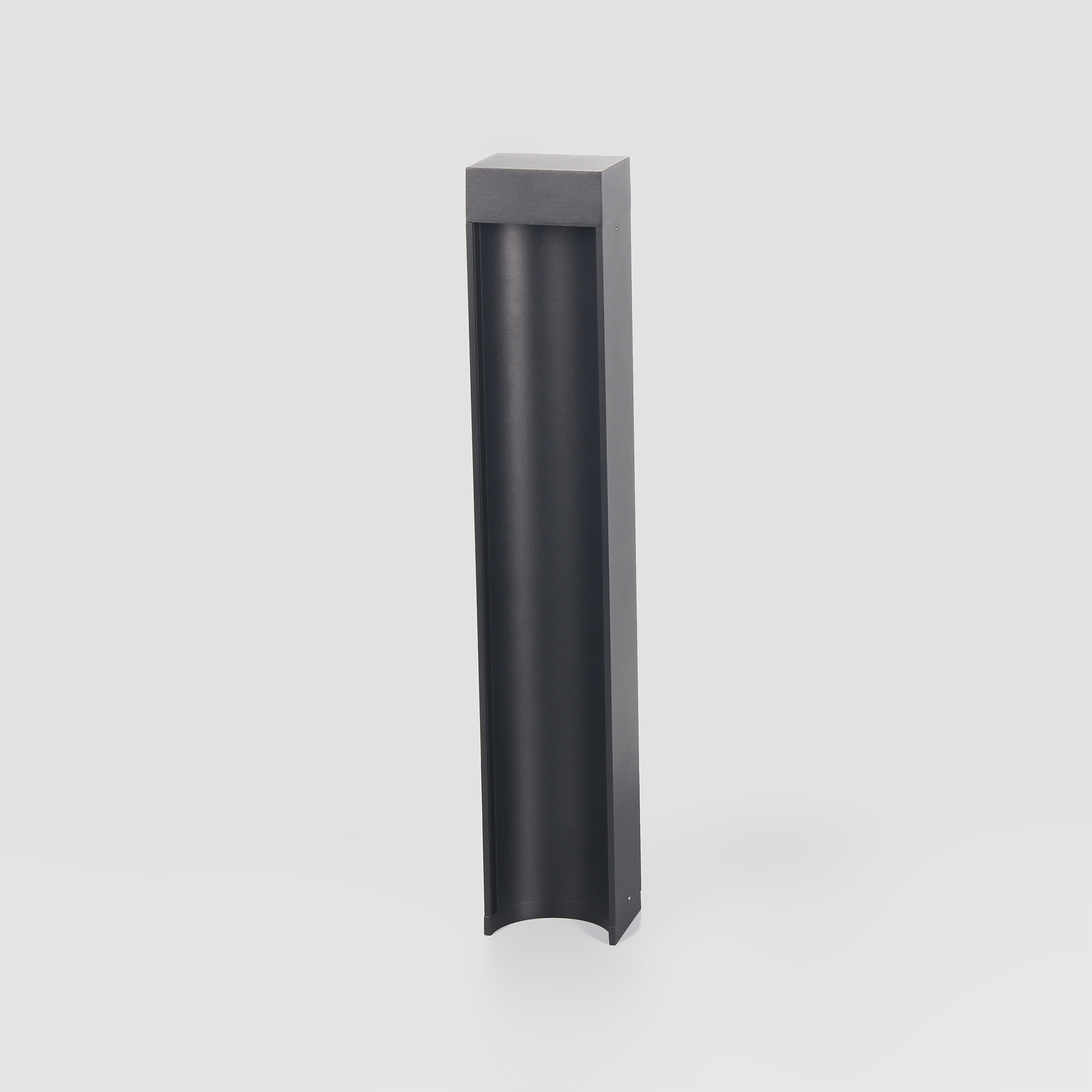

| NR-OLL0504-10-30K-BK-45D | LED Outdoor Lawn Lamp | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 10.0 | 30.0 | 300.0 | 3000K | 45° | 80 | 0.7 | Black | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 105*80*600 |
