NR-WG102 Series
POWER (WATT)
5.0/6.0/9.0/15.0/18.0/24.0
IP RATING
IP67/IP65/67
CCT
3000K
BEAM ANGLE
24°/36°
Ra
80
Technical Specifications Basic Parameters
Model No
NR-WG102 Series
Category
LED Outdoor Buried Lamp
Installation Methods
Recessed
Classes of Electrical Protection
Class I
IP Rating
IP67/IP65/67
ta
50°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
5.0/6.0/9.0/15.0/18.0/24.0
lm/w
90.0/65.0/71.6/74.0
Useful Lumen
450.0/390.0/585/585.0/1074.0/1332.0/1776.0
CCT
3000K
Beam Angle
24°/36°
Ra
80
PF
0.5
DF
0.7
Body Color
Silver
Product Main Material
PC
Dimming or not
Non-Adjustable Light
Cut hole (mm)
143*78*90/293*78*90/493*78*90/993*78*90
Guarantee
3
Directionality
Direct
Product Size (mm)
150*90*90/300*90*90/500*90*90/1000*90*90
Energy efficiency QR included

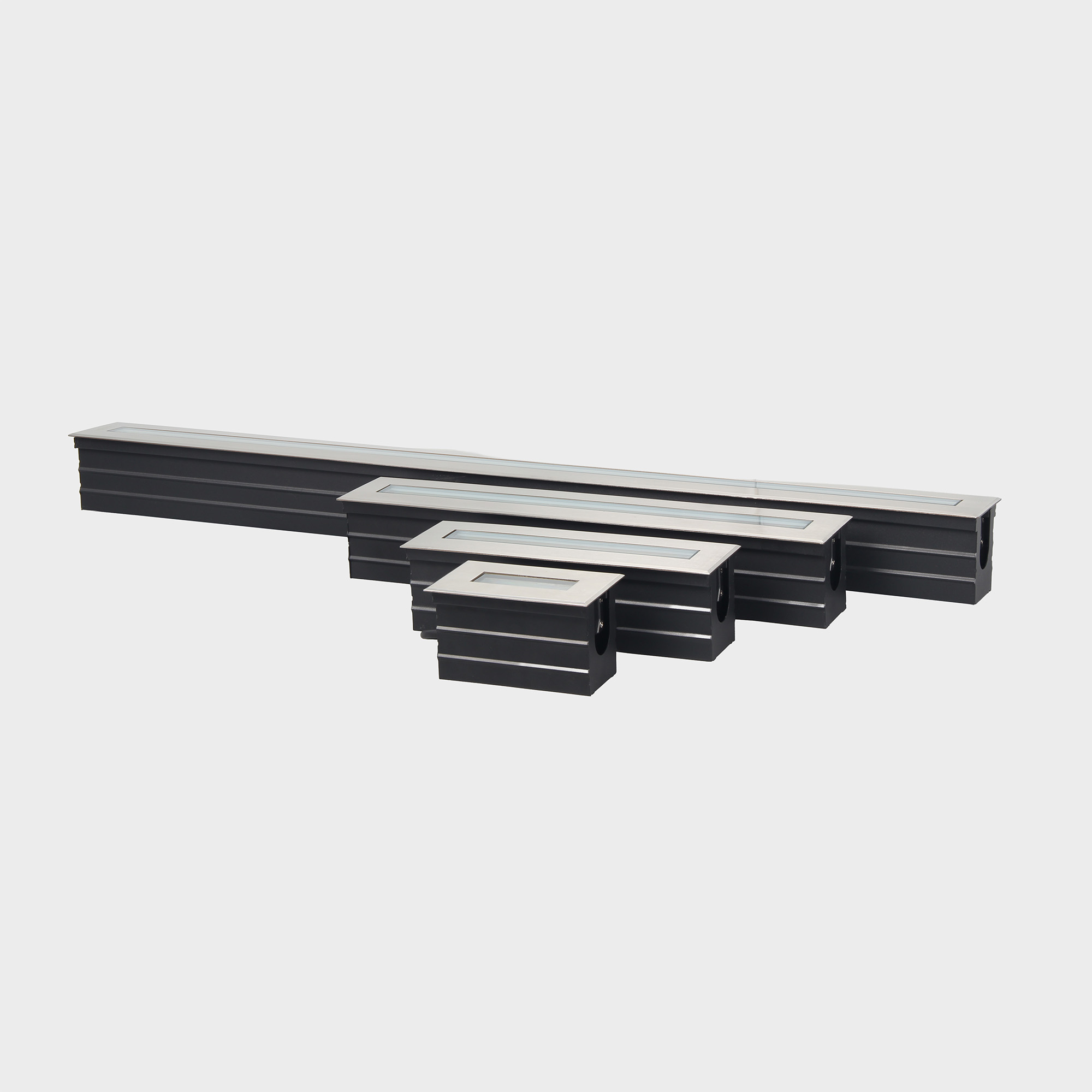

Model Variants 4 beam options
| Item Code | New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-WG102-15CM-5W-3000K | NR-BL0152-5-30K-SL-24D | LED Outdoor Buried Lamp | Recessed | Class I | IP67 | 50°C | AC220-240V | Hz | SMD | 5.0 | 90.0 | 450.0 | 3000K | 24° | 80 | 0.5 | 0.7 | Silver | PC | Non-Adjustable Light | 143*78*90 | 3 | Direct | 150*90*90 |
| NR-WG102-30CM-6-3000K-IP67 | NR-BL0151-6-30K-SL-36D | LED Outdoor Buried Lamp | Recessed | Class I | IP67 | 50°C | AC220-240V | Hz | SMD | 6.0 | 65.0 | 390.0 | 3000K | 36° | 80 | 0.5 | 0.7 | Silver | PC | Non-Adjustable Light | 293*78*90 | 3 | Direct | 300*90*90 |
| NR-WG102-50CM-9-3000K-IP67 | NR-BL0152-9-30K-SL-36D | LED Outdoor Buried Lamp | Recessed | Class I | IP65/67 | 50°C | AC220-240V | Hz | SMD | 9.0 | 585 | 3000K | 36° | 80 | 0.5 | 0.7 | Silver | PC | Non-Adjustable Light | 493*78*90 | 3 | Direct | 500*90*90 | |
| NR-WG102-9-3000K-IP67 | NR-BL0151-9-30K-SL-36D | LED Outdoor Buried Lamp | Recessed | Class I | IP67 | 50°C | AC220-240V | Hz | SMD | 9.0 | 65.0 | 585.0 | 3000K | 36° | 80 | 0.5 | 0.7 | Silver | PC | Non-Adjustable Light | 293*78*90 | 3 | Direct | 300*90*90 |
| NR-WG102-15-3000K-IP67 | NR-BL0151-15-30K-SL-36D | LED Outdoor Buried Lamp | Recessed | Class I | IP67 | 50°C | AC220-240V | Hz | SMD | 15.0 | 71.6 | 1074.0 | 3000K | 36° | 80 | 0.5 | 0.7 | Silver | PC | Non-Adjustable Light | 493*78*90 | 3 | Direct | 500*90*90 |
| NR-WG102-1M-18-3000K-IP67 | NR-UL0151-18-30K-SL-36D | LED Outdoor Buried Lamp | Recessed | Class I | IP67 | 50°C | AC220-240V | Hz | SMD | 18.0 | 74.0 | 1332.0 | 3000K | 36° | 80 | 0.5 | 0.7 | Silver | PC | Non-Adjustable Light | 993*78*90 | 3 | Direct | 1000*90*90 |
| NR-WG102-24-3000K-IP65 | NR-BL0151-24-30K-SL-36D | LED Outdoor Buried Lamp | Recessed | Class I | IP67 | 50°C | AC220-240V | Hz | SMD | 24.0 | 74.0 | 1776.0 | 3000K | 36° | 80 | 0.5 | 0.7 | Silver | PC | Non-Adjustable Light | 993*78*90 | 3 | Direct | 1000*90*90 |
